Start Solenoids


Start solenoids initiate the energy to start the electric motor for powering the liftgate.   Generally 3-post start solenoids are used for power up/gravity down lift gates.   4-post start solenoids are found on power up/power down lift gates.   Start solenoids may have a flat base to be mounted on the frame or a curved base to be mounted on the side of the 12 volt motor.

Most liftgate start solenoids are intermittent duty and do not run continuously.   A few are continuous duty solenoids for ongoing applications.    Manufacturers include Trombetta and Ametek.

APL3099 3-Post Trombetta Start Solenoid for Liftgate

APL3099 3-Post Trombetta Start Solenoid

3-post Trombetta start solenoid with curved mounting base.  Replaces Waltco 75089833.  Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Positive to excite for power up/gravity...
APL3098 4-Post Trombetta Start Solenoid for Liftgate

APL3098 4-Post Trombetta Start Solenoid

4-post Trombetta start solenoid with curved mounting base.  Replaces: Anthony A130052, Leyman P34016, Maxon 284080-01, Waltco 70092403. Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor. ...

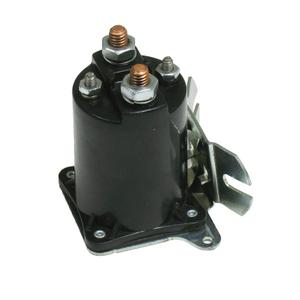

APL3096 4-Post Continuous Duty Start Solenoid for Liftgate

APL3096 4-Post Continuous Duty Start Solenoid

4-post continuous duty start solenoid with curved mounting base.  Replaces: Maxon 268030-01. 200 amp.  Generally mounts on the side of the electric motor.  Insulated for power up/power down liftgate model. ...
APL3094 3-Post Square Trombetta start solenoid for Liftgate

APL3094 3-Post Square Start Solenoid

3-post square start solenoid with curved mounting base. Replaces: Maxon 268029-01, 280394, Waltco 70092507, 75089833, 80001065. Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Positive...
APL3044 Bear 4-post Solenoid

APL3044 Bear 4-post Solenoid

APL3044 "Bear" 4-post continuous duty start solenoid with flat mounting base.   Continuous duty 225 amp.  Surge 600 amp  Used on dump units.
APL3024 4-Post Start Solenoid upright for Liftgate

APL3024 4-Post Upright Start Solenoid

4-post start solenoid with curved mounting base.  Replaces: Maxon 265662, 39002134 Intermittent Duty, 100 amp, Black Bakelite.  Generally mounts on the side of the electric motor.  Insulated for power up/power...
APL3020 3-Post Start Solenoid upright for Liftgate

APL3020 3-Post Upright Start Solenoid

3-post start solenoid with curved mounting base.  Replaces: Maxon 260270, 262939, 263061, Thieman 4421620, Waltco 75089822, 75089831, Western Motors WS-408. Intermittent Duty, 100 amp, Black Bakelite.  Generally mounts on the...
APL3014 4-post start solenoid - curved

APL3014 4-Post Start Solenoid

4-post metal canister start solenoid with curved mounting base.  Replaces: Thieman 4447, 4422710 Intermittent duty, 100 amp, heavy coil and spring.  Generally mounts on the side of the motor.  Insulated...
APL3010 3-post start solenoid - curved

APL3010 3-Post Start Solenoid

3-post metal canister start solenoid with curved mounting base.  Replaces: Maxon 207041, 339198 Waltco 70091714, 70092507 Intermittent duty, heavy coil and spring.  Generally mounts on the side of the motor. ...
APL3004 4-Post Start Solenoid - Flat

APL3004 4-Post Start Solenoid

4-post metal canister start solenoid with flat mounting base.  Replaces: Leyman P46344 Waltco 700912403, 75089821 Intermittent duty, 100 amp, heavy coil and spring.  Generally mounts on the frame.   Positive to...
APL 3000 3-post start solenoid

APL3000 3-Post Start Solenoid

3-post metal canister start solenoid with flat mounting base.  Replaces: Maxon 53395, 229198, 251880, 260270 Tommy Gate 967 Waltco 39002122, 70092531 Intermittent duty, heavy coil and spring.  Generally mounts on...
80001065 Waltco 3-Post Square Trombetta start solenoid

80001065 Waltco 3-Post Square Start Solenoid

80001065 Waltco 3-post square start solenoid with curved mounting base. Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Positive to excite for power up/gravity down...
75089833 Waltco 3-Post Trombetta Start Solenoid for Liftgate

75089833 Waltco 3-Post Trombetta Start Solenoid

75089833 Waltco 3-post Trombetta start solenoid with curved mounting base.  Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Positive to excite for power up/gravity down...
75089831 Waltco 3-Post Start Solenoid upright for Liftgate

75089831 Waltco 3-Post Upright Start Solenoid

75089831 Waltco 3-post start solenoid with curved mounting base.  Intermittent Duty, 100 amp, Black Bakelite.  Generally mounts on the side of the electric motor.   Positive to excite for power up/gravity...
75089822 Waltco 3-Post Start Solenoid upright for Liftgate

75089822 Waltco 3-Post Upright Start Solenoid APL3020

75089822 Waltco 3-post start solenoid with curved mounting base. . Intermittent Duty, 100 amp, Black Bakelite.  Generally mounts on the side of the electric motor.   Positive to excite for power...
Waltco 70092531 3-post start solenoid for liftgate

70092531 Waltco 3-Post Start Solenoid

Waltco 70092531 3-post metal canister start solenoid with flat mounting base.  Intermittent duty, heavy coil and spring.  Generally mounts on the frame.   Positive to excite for power up/gravity down liftgate...
70092507 Waltco 3-Post Square Trombetta start solenoid

70092507 Waltco 3-Post Square Start Solenoid

70092507 Waltco 3-post square start solenoid with curved mounting base. Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Positive to excite for power up/gravity down...
70092403 Waltco 4-Post Trombetta Start Solenoid for Liftgate

70092403 Waltco 4-Post Trombetta Start Solenoid

70092403 Waltco 4-post Trombetta start solenoid with curved mounting base.  Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Insulated for power up/power down liftgate model. ...
Maxon 53395 3-post start solenoid for liftgate

53395 Maxon 3-Post Start Solenoid

Maxon 53395 3-post metal canister start solenoid with flat mounting base.  Intermittent duty, heavy coil and spring.  Generally mounts on the frame.   Positive to excite for power up/gravity down liftgate...
4421620 Thieman 3-Post Start Solenoid upright for Liftgate

4421620 Thieman 3-Post Upright Start Solenoid

4421620 Thieman 3-post start solenoid with curved mounting base.   Intermittent Duty, 100 amp, Black Bakelite.  Generally mounts on the side of the electric motor.   Positive to excite for power up/gravity...
39002134 Maxon 4-Post Start Solenoid upright for Liftgate

39002134 Maxon 4-Post Upright Start Solenoid

39002134 Maxon 4-post start solenoid with curved mounting base. Intermittent Duty, 100 amp, Black Bakelite.  Generally mounts on the side of the electric motor.  Insulated for power up/power down liftgate...
Waltco 39002122 3-post start solenoid for liftgate

39002122 Waltco 3-Post Start Solenoid

Waltco 39002122 3-post metal canister start solenoid with flat mounting base.  Intermittent duty, heavy coil and spring.  Generally mounts on the frame.   Positive to excite for power up/gravity down liftgate...
Maxon 339198 3-post start solenoid - curved for liftgates

339198 Maxon 3-Post Start Solenoid

Maxon 339198 3-post metal canister start solenoid with curved mounting base.  Intermittent duty, heavy coil and spring.  Generally mounts on the side of the motor.   Positive to excite for power...
284080-01 Maxon 4-Post Trombetta Start Solenoid for Liftgate

284080-01 Maxon 4-Post Trombetta Start Solenoid

284080-01 Maxon 4-post Trombetta start solenoid with curved mounting base.   Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Insulated for power up/power down liftgate model.  Grounded. ...
280394 Maxon 3-Post Square Trombetta start solenoid

280394 Maxon 3-Post Square Start Solenoid

280394 Maxon 3-post square start solenoid with curved mounting base.  Intermittent duty, 150 amp.  Generally mounts on the side of the electric motor.  Positive to excite for power up/gravity down...
